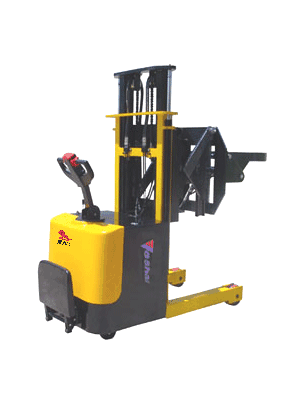

| Reach truck drums holding clip |
all electric oil drum handling / turning vehicles suitable for all kinds of buckets for handling class, lifting, loading and unloading, the car imported electric vehicle control system dedicated walking, running stable, flexible and convenient. Human-one multi-function control handle, beautiful appearance, simple operation, can drum, plastic drum and other drums to enhance the holding clip, flip, slow 180-degree forward flip down materials functions. Use of automatic fault detection with fault, walking variable speed devices, high power for the switch, integrated hydraulic pump stations, power walking driving wheel; optional high-power battery to ensure your long hours of work use; supporting intelligent battery charger, the charging process without hand care, make it more secure and convenient.
|
|
|
|
型号 Model |
提升高度 Lifting height |
最大负荷 Maximum load |
旋转角度 Rotation |
行走速度 Walking speed |
液压提升电机 Hydraulic Lifting Motor |
电池 Battery |
外形尺寸 Dimensions |
|
SL-WVD-40/16 SL-WVD-40/16 |
1600mm 1600mm |
400Kg 400Kg |
向前旋 Forward rotation
转180度 180 Degree Rotation |
负载：0~6Km/h， Load: 0 ~ 6Km / h,
空载：0~8Km/h 电子无级调速 No-load: 0 ~ 8Km / h electronic variable speed |
DC24V DC24V
2000W 2000W |
12 X 2V/210Ah 12 X 2V/210Ah |
L=1800mm L = 1800mm
W=1100mm W = 1100mm
H=1580/ H = 1580 /
1850/2050/ 1850/2050 /
2250mm 2250mm | |
|
|
